Gigabyte GP-P550SS 550W – Reliable 80+ Silver Power Supply

The Gigabyte GP-P550SS 550W 80+ Silver Power Supply is a reliable and efficient PSU designed for modern gaming PCs, productivity systems, and custom desktop builds. With 550W output capacity, 80 PLUS Silver certification, Intel ATX 3.0 support, a 120mm Fluid Dynamic Bearing fan, flat black cables, and comprehensive electrical protections, it provides a strong foundation for stable PC power delivery.

550W Reliable Power Output

The Gigabyte GP-P550SS 550W Power Supply provides a rated output capacity of 550 watts, making it suitable for many mainstream desktop and gaming PC configurations when paired with appropriately selected hardware. It uses a powerful single +12V rail designed to provide stable power delivery and broad hardware compatibility.

For any specific CPU and graphics-card combination, users should always calculate total system power requirements before selecting a PSU.

80 PLUS Silver Certification

The GP-P550SS carries an 80 PLUS Silver certification for 230V EU operation. Gigabyte specifies efficiency of approximately 90% at typical load, helping reduce wasted electrical energy, unnecessary heat generation, and cooling demand compared with less efficient power supplies.

Higher power efficiency can contribute to a cooler and more efficient PC build, particularly during extended gaming, productivity, and everyday workloads.

Intel ATX 3.0 with ATX 3.1 Compatibility

The Gigabyte P550SS 550W PSU follows the Intel ATX 12V v3.0 form factor and is listed as compatible with the ATX 3.1 standard. Gigabyte states that the unit can handle up to 2× total power excursion, helping it cope with short-duration power spikes generated by modern PC hardware.

This makes it a more modern PSU platform than older ATX designs, although buyers should still verify the wattage and connector requirements of their exact graphics card and processor.

120mm Fluid Dynamic Bearing Fan

Cooling is handled by a 120mm Fluid Dynamic Bearing (FDB) fan. According to Gigabyte, the fan automatically adjusts its speed according to power consumption and temperature to help reduce unnecessary operating noise.

Fluid Dynamic Bearing technology is also designed to provide improved durability compared with conventional sleeve-bearing fan designs, making the PSU suitable for regular gaming and workstation use.

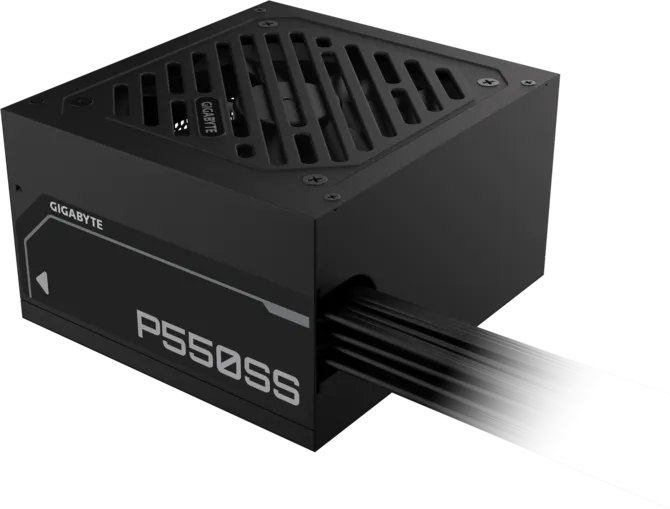

Flat All-Black Cable Design

The Gigabyte GP-P550SS uses flat, all-black power cables. Flat cables can make routing wires through a gaming case easier while helping reduce cable clutter around the motherboard, graphics card, storage devices, and power-supply compartment.

A cleaner cable layout can also help maintain unobstructed airflow through the chassis.

Single +12V Rail

The power supply uses a single +12V rail. Gigabyte describes this configuration as providing stable power output and compatibility while simplifying power distribution to major PC components.

The +12V rail is particularly important for components such as the CPU and graphics card, which represent some of the largest power consumers in a gaming computer.

Comprehensive Electrical Protection

The Gigabyte GP-P550SS 80+ Silver Power Supply includes multiple built-in electrical protection mechanisms:

• OVP – Over Voltage Protection
• OPP – Over Power Protection
• SCP – Short Circuit Protection
• UVP – Under Voltage Protection
• OCP – Over Current Protection
• OTP – Over Temperature Protection

These protections are designed to help safeguard the PSU and connected PC components when abnormal electrical conditions occur.

Active Power Factor Correction

The GP-P550SS features Active PFC, rated above 0.9 under typical conditions. Its specified input range is 155–240V AC at 50–60Hz, with an input current rating of 6.3A.

Active PFC improves the way the power supply draws power from the electrical source and is a standard feature expected from modern PC power supplies.

PC Power Connectors

The Gigabyte GP-P550SS includes the essential connectors required for many mainstream PC configurations. The official specification lists:

• 1 × ATX/MB 20+4-pin connector
• 1 × CPU/EPS 4+4-pin connector
• 2 × PCIe 6+2-pin connectors
• 5 × SATA power connectors
• 3 × 4-pin peripheral connectors

The two PCIe 6+2-pin connectors provide support for compatible graphics cards that use conventional PCIe auxiliary power connectors. Buyers should verify the exact connector and wattage requirements of their graphics card before installation.

Compact ATX Dimensions

The power supply measures approximately 150 × 140 × 86mm, providing a relatively compact ATX footprint suitable for many standard gaming and desktop PC cases.

Users should still confirm the available PSU clearance inside their selected chassis, particularly in compact cases with drive cages or restricted cable-management space.

Designed for Long-Term Use

Gigabyte lists the GP-P550SS with an MTBF of more than 100,000 hours. The manufacturer also lists a three-year warranty, although warranty terms can vary depending on region and distributor.

For local purchases, customers should always confirm the exact warranty period provided by the seller or authorized distributor.

Suitable for Gaming and Everyday PC Builds

The Gigabyte GP-P550SS can serve as a practical PSU option for properly matched:

• Gaming PCs
• Home desktop computers
• Office systems
• Content-creation PCs
• Productivity systems
• Entry-level and mid-range custom PC builds
• PC upgrade projects

The final PSU requirement depends on the complete component configuration, especially the processor and graphics card.

Key Features

• 550W rated output capacity
• 80 PLUS Silver certification
• Up to 90% efficiency at typical load at 230V EU
• Intel ATX 12V v3.0
• Compatible with ATX 3.1
• Supports up to 2× total power excursion
• Powerful single +12V rail
• 120mm Fluid Dynamic Bearing fan
• Automatic fan-speed adjustment
• Active PFC
• Flat all-black cables
• 2 × PCIe 6+2-pin connectors
• 5 × SATA connectors
• OVP, OPP, SCP, UVP, OCP and OTP protections
• More than 100,000-hour listed MTBF
• 150 × 140 × 86mm dimensions
• Three-year manufacturer warranty, region dependent

The Gigabyte GP-P550SS 550W 80+ Silver Power Supply combines efficient power delivery, modern ATX support, a durable FDB cooling fan, flat cables, and comprehensive protection features. It is a solid choice for users building a reliable gaming, office, or general-purpose desktop PC with power requirements appropriate for a 550W PSU.
